IG-55 Fire Extinguishing System For Data Center
Description:
IG-55 – Nitrogen and Argon: is an inert gas comprising 50% Argon & 50% Nitrogen. IG-55 Fire Suppression Systems reduce the oxygen concentration inside the protected hazard area. Each system is designed to decrease oxygen at specific levels when discharged, ensure that the agent is quickly and consistently distributed and reaches concentration in 60 seconds.
IG-541 – Nitrogen, Argon and CO2: is one of the most popular fire protection agents, comprising of 52% Nitrogen, 40% Argon and 8% CO2. An IG-541 fire suppression system reduces the oxygen concentration inside the protected hazard area. This is minimised by the application of the IG-541 agent until it reaches a level where combustion is no longer supported or sustainable. IG-541 is stored in high-pressure cylinders as a compressed gas and so the space required for cylinder storage depends on the system pressure and discharge capacity required.
IG-100 – Pure Nitrogen: is a clean fire extinguishing agent consisting of 100% Nitrogen and is used in total flooding systems. IG-100 suppression systems are based on the principle of reducing the oxygen concentration inside the protected hazard area. The oxygen concentration is minimized by the application of IG-100 until it reaches a level where combustion is no longer supported. Each system is designed to decrease oxygen to a specific level. When discharged, IG-100 is quickly and uniformly distributed within the enclosure, achieving design concentration in 60 seconds.
Inert gasses are naturally present in the atmosphere, and so when used as fire suppression agents, they have zero greenhouse effect and ozone layer depletion potential.
Components:
|
1
|

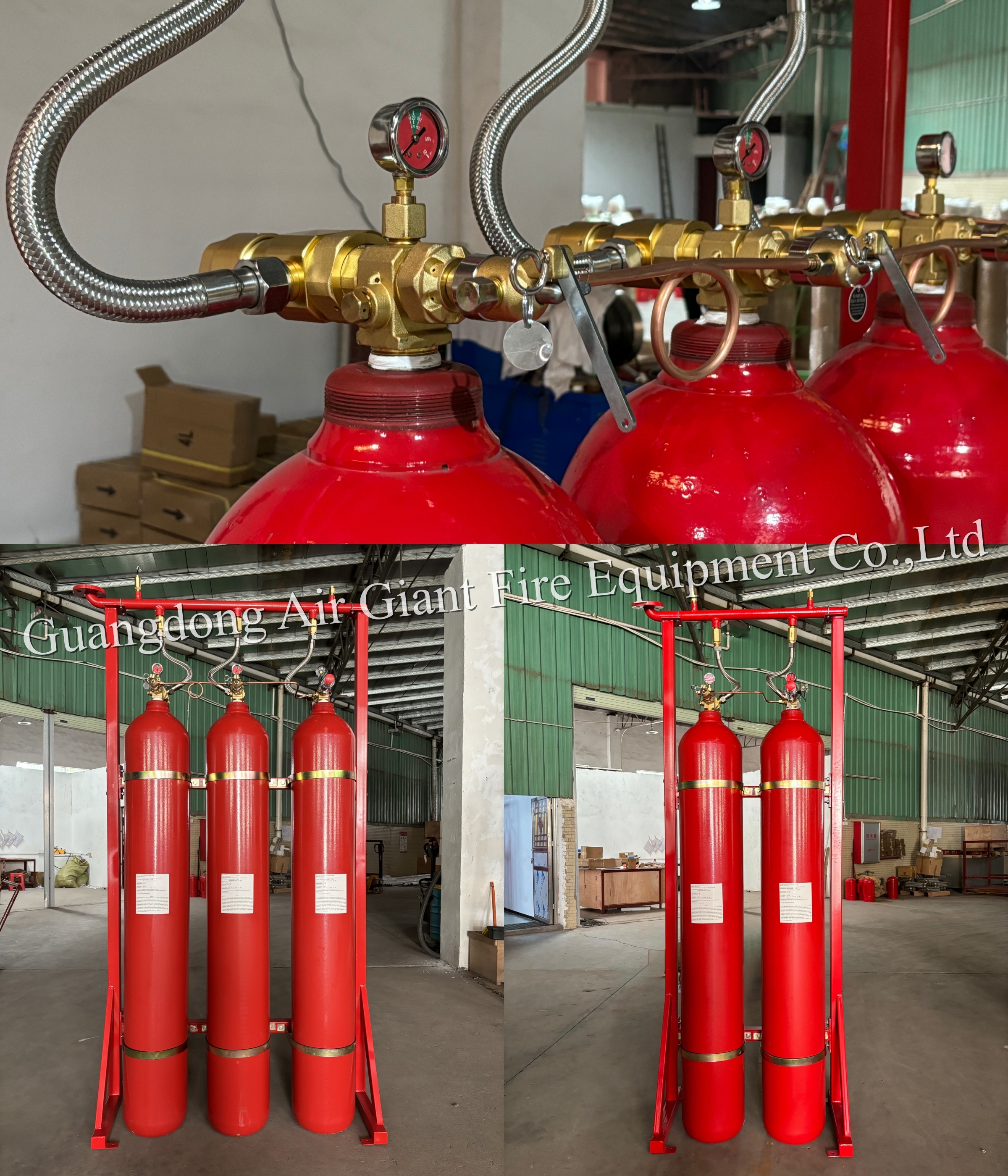

Storage Cylinders
|
5
|
Smoke Detectors, Heat Detectors
|
9
|
Manual Release Station
|
|
2
|
Release Device
|
6
|
Control
|
10
|
Backup Power Supply
|
|
3
|
Piping Network
|
7
|
Audible and Visual Alarms
|
11
|
Signage and Instructions
|
|
4
|
Nozzles
|
8
|
Pressure Switches and Gauges
|
12
|
Ventilation System(selection)
|
Features:
1. Cylinders available in 300 and 200 bar pressure options
2. Cylinders available in 80 and 140 litre capacities
3. Nozzles available with 360 and 180 degree discharge patterns
4. Cylinders suitable for storage at temperatures from -20° to +54°C (-4°to +130°F)
5. Selector valve sizes range from 1” to 4” (25 to 100 mm nominal)
6. Green agents with zero ozone depletion and zero global warming)
7. Non-conductive – suitable for electronic equipment protection
8. Clean Agents with no clean-up of agent required after discharge
Applications:
1. Art Galleries
2. Computer Rooms
3. Control Rooms
4. Data Centres
5. Electric Switch Rooms
6. Financial Centres and Banks
7. Medical Facilities
8. Museums
9. Petrochemical Installations
10. Pharmaceutical Facilities
11. Rare Book Libraries
12. Record Storage Facilities
13. Server Rooms
14. Telecommunication Centers
Packing and Shipping:
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
