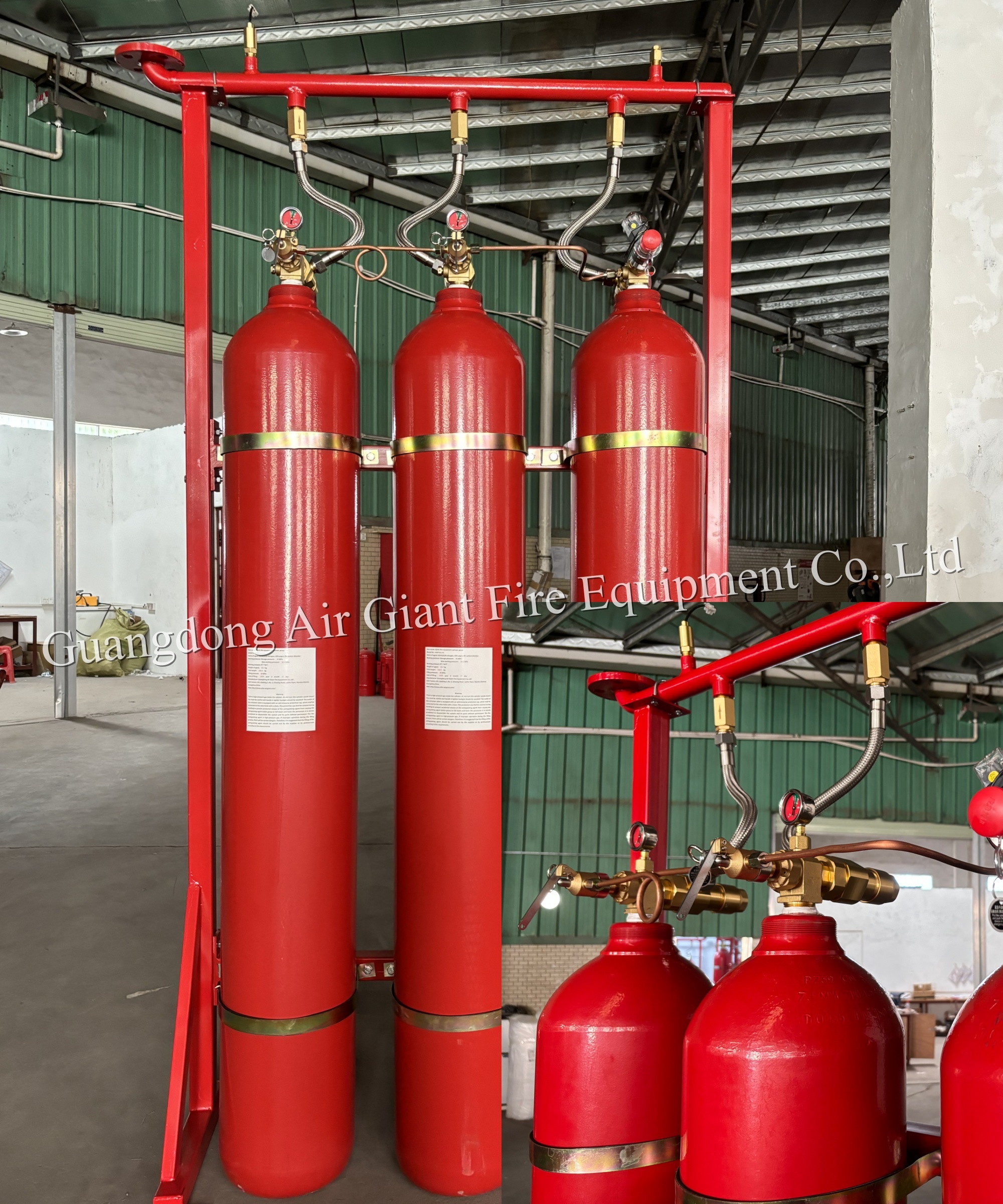

IG55 Inert Gas Fire Suppression Systems Are Fast-acting, Environmentally Friendly And Safe
Description:
IG-55 is a unique gas blend, containing equal parts of two natural components: 50% argon and 50% nitrogen. This combination of gases offers numerous benefits and uses in various industries.
Since its components occur naturally in the environment, IG-55 does not contribute to global warming and is also environmentally friendly as it does not harm the ozone layer. Additionally, it has a similar density to air, making it easy to handle and use.
Clean and Versatile
Both argon and nitrogen are clean, non-corrosive, colorless, and tasteless gases, making them suitable for a wide range of applications. They are also compatible with various materials such as nickel, steel, stainless steel, copper, bronze, and tin, making them highly versatile in adapting to different actuation systems.
Storage and Pressure
IG-55 is typically stored in high-pressure cylinders, similar to other compressed gases. The size of the storage space required depends on the gas's pressure and capacity. Our IG-55 system is designed to operate at a pressure of 30MPa, allowing for efficient use of space and cost savings.
Technical parameters of IG55 fire suppression system
|
Working temperature (℃)
|
0℃～+50℃
|
|
Working pressure
|
Storage pressure
|
20.0MPa
|
30.0MPa
|
|
Max. working pressure (+50℃)
|
23.2MPa
|
36.6MPa
|
|
Min. working pressure (-20℃)
|
18MPa
|
27MPa
|
|
Container volume (L)
|
80L
|
140L
|
|
Filling weight (kg, @200 bar)
|
22.32kg
|
39.06kg
|
|
Filling weight (kg, @300 bar)
|
33.48 kg
|
58.59kg
|
|
System operating voltage
|
220V AC,24V DC
|
|
System start mode
|
Electrical automatic, electrical manual, mechanical emergency start
|
|
Design concentration
|
Class A dangerous material surface fire
|
40.3%
|
|
Class B
|
47.6%
|
|
The design concentration of the protective zone with people working
|
40.3%～43%
|
Components:
|
1
|
Agent storage cylinder
|
5
|
Container valve
|
9
|
Manifold
|
13
|
Container valve for driving cylinder
|
17
|
Select valve
|
|
2
|
Frame
|
6
|
Flexible hose
|
10
|
Reducing devise
|
14
|
Solenoid actuator
|
18
|
Pressure switch
|
|
3
|
Cylinder clamp
|
7
|
Safety valve
|
11
|
Pilot tube
|
15
|
Relief valve
|
19
|
Nozzle
|
|
4
|
Gas driving actuator
|
8
|
Liquid flow check valve
|
12
|
Driving cylinder
|
16
|
Gas flow check valve
|
|
|
Features:
-- No Harmful Byproducts: Safe for both people and the environment.
-- Fast Activation: Rapid fire suppression to minimize damage.
-- Low Storage Pressure: Requires less storage space compared to other gaseous systems.
-- Compliance: Meets international fire safety standards, including NFPA, ISO, and EN.
Applications:
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
Packing and Shipping:
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
